Edelbrock Performer 5.0 RPM II Intake Manifold

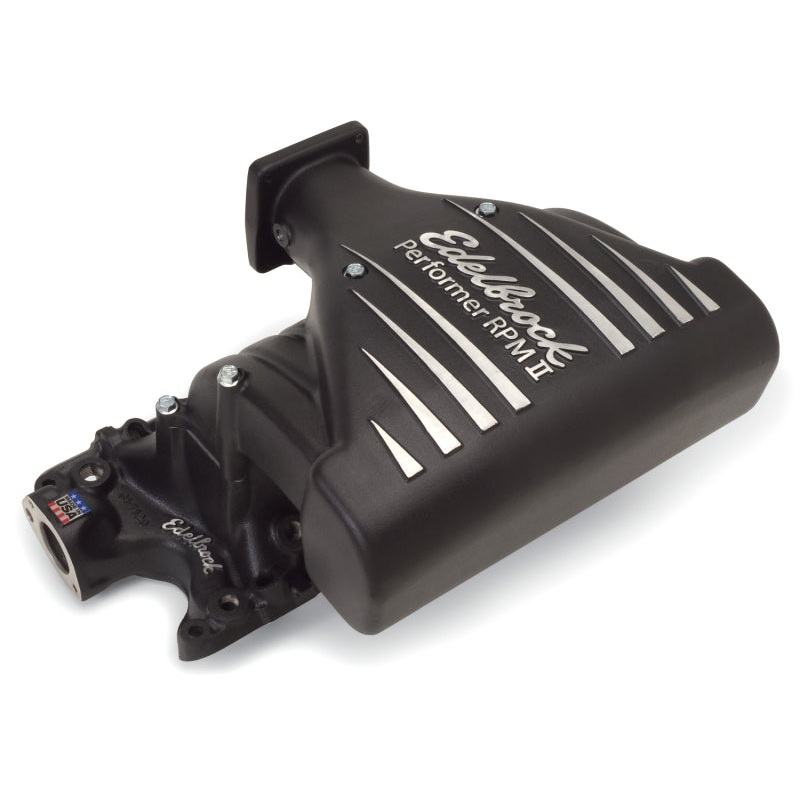

Edelbrock part #71233 Performer 5.0 RPM II intake manifold is designed for 1986-95 5.0L Mustang engines, offering significant gains in horsepower over existing designs in the 1500 to 6500 rpm range. It is ideally suited for street and strip applications.

The manifold features a V-shaped crossover with an increasing cross-sectional area, passing over to eight large tapered runners. A 70mm throttle body is recommended (75mm will require port matching). Engines from 1994-95 Mustangs require Throttle Body Adapter #38353 and Adapter Kit #8025. It may not fit with the stock hood of 1994-95 Mustangs; an aftermarket hood is recommended.

The manifold offers a durable black powder-coated finish for long-lasting protection and a distinctive look.

Specifications and Recommendations:

• Recommended intake gasket: Edelbrock #7220
• Air valve location is 0.30″ higher and 0.50″ forward from stock
• Port exit dimensions: 1.16″ x 2.0″
• Recommended cams: Ford SVO X-303 or Z-303
• Overall height: 11.13″
• Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076; DO NOT USE END SEALS GASKETS
• Hardened washers must be used with intake bolts to ensure proper torque and prevent galling of the aluminum

Installation instructions

Fitment

Edelbrock’s Warranty

For information on Edelbrock’s warranty terms and conditions, please click here.
