Capable of Supporting up to 2600 Horsepower

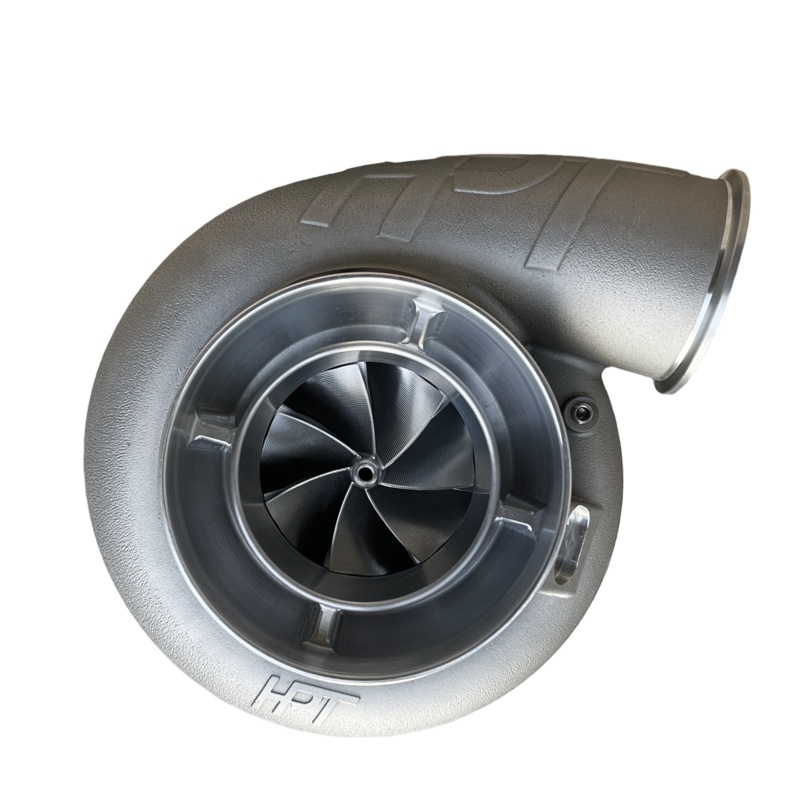

The F5 108112 Turbocharger is equipped with HPT’s Quick Spool Technology, providing high efficiency with minimal lag.

Alongside the bearing system, HPT turbochargers boast superior aerodynamics with lightweight rotating groups. This combination of low-resistance bearings and optimized airflow allows for a larger turbo size without sacrificing transient response.

Features:

• F5 Compressor Cover w/ Ported Shroud
• Speed Sensor Provision
• 2618 Aluminum Compressor Wheel
• 713C Inconel Turbine Wheel
• Cast Aluminum Bearing Housing w/ Integrated Back Plate
• Ceramic Dual Ball Bearing System
• Turbosmart Oil Feed Filter

Specs:

• Compressor Cover Inlet: 7″
• Compressor Cover Discharge: V-Band
• Compressor Wheel Inducer: 108.00mm
• Turbine Wheel Exducer: 112.80mm

Stainless Steel Turbine Housing Options:

• T5 Inlet V-Band Discharge 1.24 A/R
• T5 Inlet V-Band Discharge 1.40 A/R

F5 Turbine Housing Clamp:

Discharge Clamp(Fits all F5 Turbine Housings)

F5 Turbine Housing Flange:

Discharge Flange(Fits all F5 Turbine Housings)
