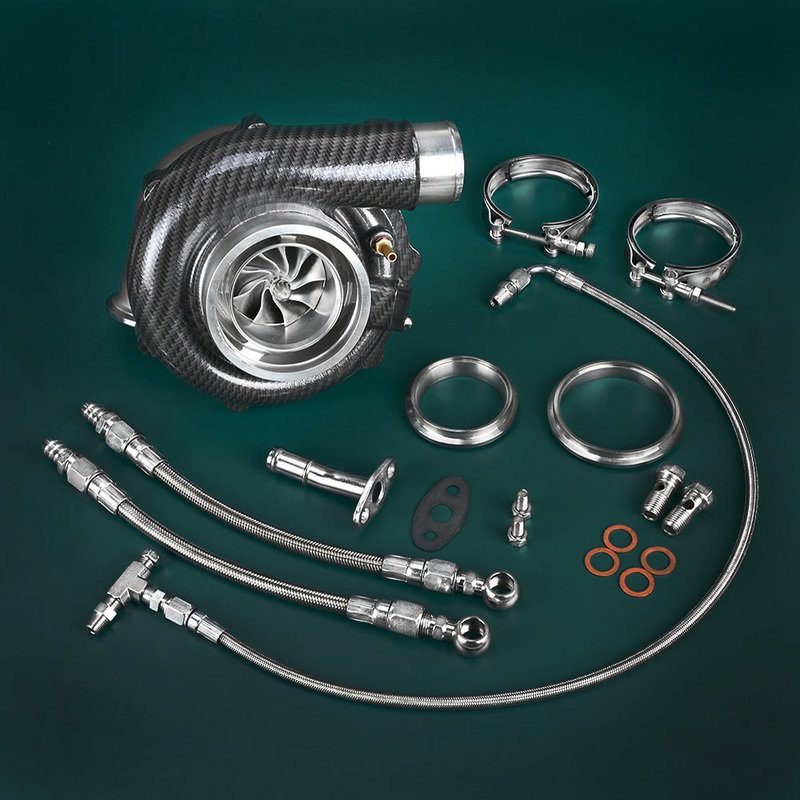

LAB Z Turbo TL71 V-band 0.63 A/R Stainless (G30-770) Ball Bearing Turbo w/ Aluminum Center Housing

Application:

Universal turbo for performance use, racing car, etc.

Displacement : 2.0L ~ 3.5L

Horsepower : 475 ~ 770 HP

Wheel Spec:

Compressor Wheel : 57.5 / 71.4 mm (9 Swirling Blades / Point Mill Wheel)

Turbine Wheel :55 / 60 mm ( 9 Blades)

Compressor Housing:

Inlet 4″ / Outlet 2″ / AR70 / Carbon Outfit

Turbine Housing:

V-band 0.63 A/R Stainless Steel

Bearing Type:

Lab Z Ceramic Ball Bearing

Cooling:

Oil Water Cooled System(Water cooling must be used for ball bearing type)

Flange Size:

Flange Outlet : Inside diameter 2.87″ (73 mm)Outside diameter 3.2″ (81.5 mm) / 3.53″ (90 mm)

Flange Inlet :Inside diameter 1.98″ (50.5 mm)Outside diameter 2.34″ (59.5 mm) / 3″ (76 mm)

Includes:

Install kit will be included in the package

Description:

All the parts are new and every cartridge (CHRA) installed in each turbocharger is balanced by using Turbo Technics VSR balancing machine to ensure quality.

CHRA balancing report will be included in the package.

*Contact usFor any inquiries or special requests such as larger amount ordering
