Part Number: PCI-SM-FC-L-A1

Vehicle Applications:

2017-2021 Civic Type R

2016-2021 Civic Si

2016-2021 Civic Non-Si

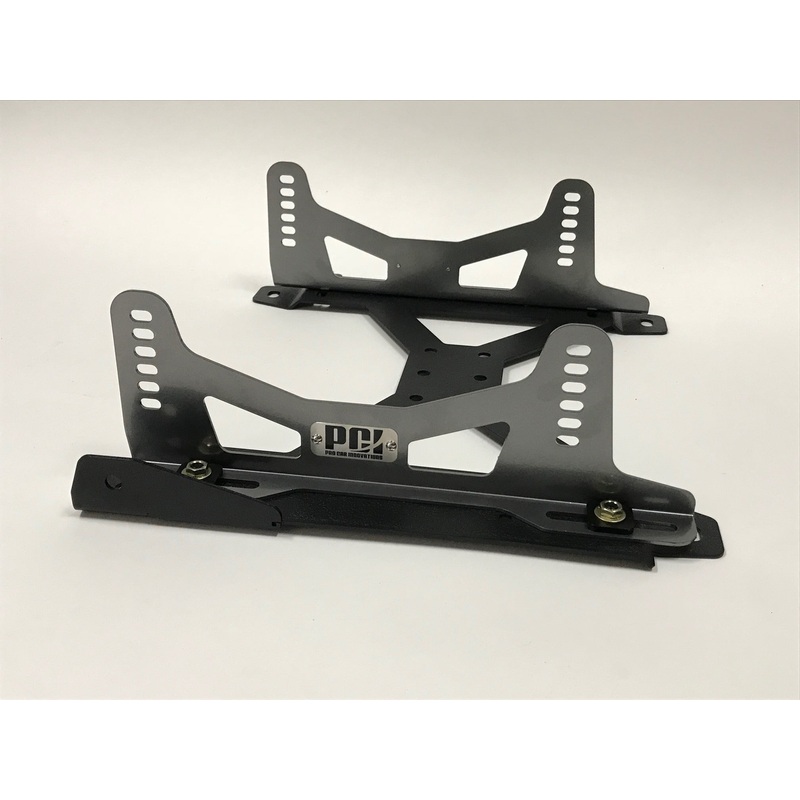

Wondering how to mount that new race seat? Pro Car Innovations Adjustable Seat Mounts takes the guessing game out of this install. Finding the correct seat brackets can be almost impossible where most end up with a self-fabricated mount. PCI has invested the research in order to create an ingeniously crafted safe design that’s easily adjustable to accommodate multiple applications. The PCI Racing Spec Seat Mount Has the largest range of adjustment and lowest possible seat fitment of our seat mount line.

1/8″ steel vs. 3/16″ steel
Our mounts are laser cut and cnc formed completely from one piece for strength, stiffness and weight savings. With our design we can achieve the same strength if not more than 3/16″ steel by having bends and altering the shape to areas where increased strength and stiffness is required. So don’t be fooled by thicker heavier steel is better. 3/16″ steel is more widely used for the simplicity of design and manufacturing. When you weld on the mounting legs 3/16″ steel is your only design option. Our mounts exceed the strength of the seat and floor they’re bolted to.

Features
– Precision CNC laser cut and bent from one piece of 1/8″ 3mm carbon steel
– One piece mounting base design
– Multi direction adjustability
– 5 and 6 point sub belt mounting locations
– Single tool adjustments with bottom locking hardware
– Zinc plated grade 8 hardware
– Powder coated mounting base and side mounts
– Stainless steel laser etched bolt on logo plates
– 1/4″ x1.25″ round black nylon side mount spacers included in kit

Benefits
– CNC bent one piece design allows for use of lighter 1/8″ steel vs. heavy 3/16″
– Uniquely designed for each vehicle for the best possible fitment
– Mounts to factory bolt locations with precise factory fitment
– 5 and 6 point sub belt mounting
– Hassle free easy installation
– Custom side mount options available

Specs
– 3mm carbon steel
– CNC laser cut, CNC bent
– Black wrinkle/silver powder coat
– Zinc plated grade 8 hardware
– 12 5/8″ (320mm) to 19 1/2″ (495mm) width adjustments for most applications.
– 6″ (152mm) range front to back adjustment

All adjustable seat mounts will come standard with side mount SM-SIDE-A1 To order with a different side mount visit the side mount category to pick a different side mount.

Please email if requesting on of the below.

SM-SIDE-A2 1.5″ Set Back Adjustable Side Mount

SM-SIDE-A3 6″ Tall Adjustable Side Mount

SM-SIDE-A4 1.5″ Set Back Adjustable Side Mount + 6″ Tall Adjustable Side Mount

SM-SIDE-S2 Narrow / Wide Slider Side Mount

SM-SIDE-S3 6″ Tall Adjustable Slider Side Mount

SM-SIDE-S4 Narrow / Wide Slider Side Mount + 6″ Tall Adjustable Slider Side Mount
