Part Number:

PRL-HCR-FF-WIFI

Vehicle Applications: 2017-2021 Civic Type R

2017-2021 Honda Civic Type-R FK8
2023+ Honda Civic Type-R FL5Fits all variant models including RHD, International Models, Etc.NOT compatible with PRL PTFE Fuel Lines

• WiFi module wirelessly analyzes ethanol content via smart device
• Optional 0.5V – 4.5V configurable output for use with tuning device/datalogger

• FK8 Civic Type-R ONLY compatible with Hondata

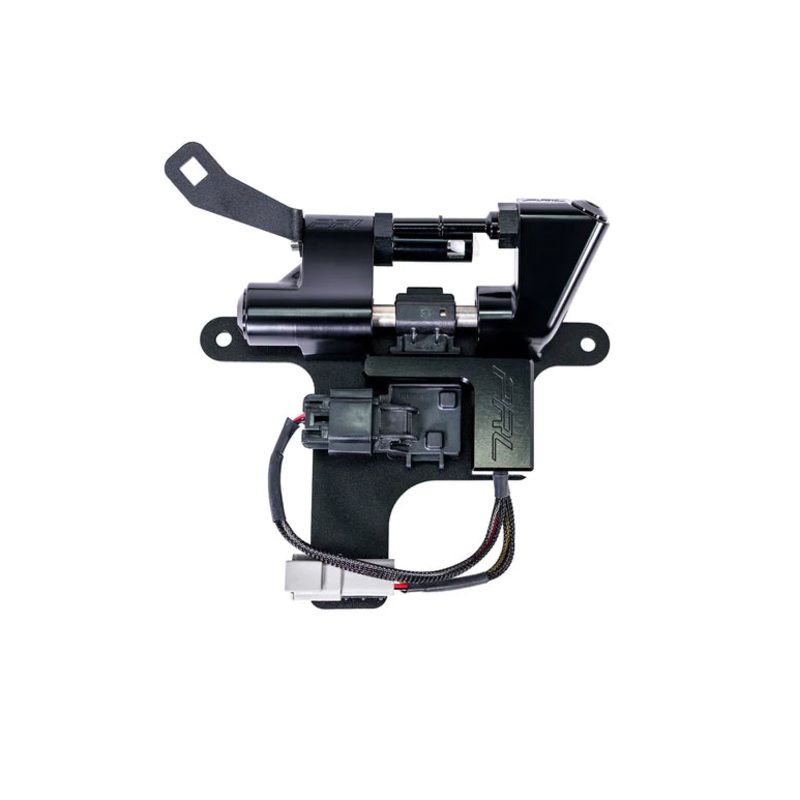

The PRL Motorsports Plug n Play WiFi Flex-Fuel / Ethanol Content Analyzer Kit allows customers to wirelessly monitor ethanol content via any smart device or enable flex fuel via an optional 0.5-4.5V configurable output with a tuning device. Our innovative Patent Pending design utilizes the factory fuel line, which eliminates the chance for alternative fuel line deterioration and improves aesthetics. This kit utilizes factory plugs/outputs under the hood for power and communication to the ECU, meaning no need for additional wiring, cutting, splicing or running wires to the fuse box or through the firewall into the cabin! All hardware and bracketry is include for quick and easy installation. Kits can be installed and uninstalled within minutes. Please note that our kit does NOT utilize an ethanol content gauge, as we feel that this is unnecessary. Hondata and KTuner V1.2 both offer Bluetooth capabilities, while the KTuner V2 LCD screen can be used to display ethanol content if desired. All components are ethanol compliant!

Did you know that the factory fuel line assembly is actually Teflon andextremely resistantto ethanol-base fuels?

Kit Includes:

• Billet Aluminum Flex-Fuel Converter Case w/ Sealed & Potted Board (WiFi)
• Genuine GM Continental Ethanol Content Sensor
• Billet Stock Location EFI Diverter Fittings
• Plug ‘N Play Braided Wiring Harness
• Stainless Mounting Bracket
• Stainless Hardware
